Q900 Version 3 – ALL BAND ALL MODE HF/VHF/UHF TRANSCEIVER

Was ist neu in der 3. Generation:

Der aktuelle Q900 ist das neueste Produkt, das im Jahr 2022 auf den Markt kommt und die dritte verbesserte Generation darstellt.

Verglichen mit der ersten Version (HS2) und der zweiten Version (qr20) hat die dritte Generation alle bisherigen Probleme optimiert.

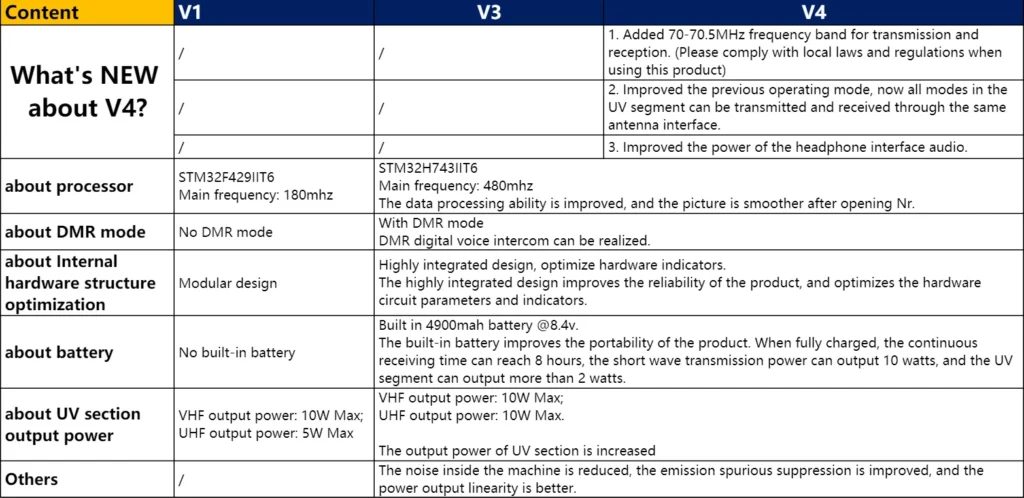

Upgraded contentFirst generation3rd generationAdvantages
Upgrade processorSTM32F42911T6
Main frequency: 180mhz
STM32H7431IT6
Main frequency: 480mhz
The data processing ability is improved, and the picture is smoother after opening Nr. STM32F42911T6
Add support for DMR modeNo DMR modeWtih DMR modeDMR digital voice intercom can be realized.
Internal hardware structure optimizationModular designHighly integrate design optimize hardware indicatorsThe highly integrated design improves the reliability of the product, and optimizes the hardware circuit parameters and indicators.
Built in batteryNo built-in batteryBuilt in 4900mah battery @8.4vThe built-in battery improves the portability of the product. When fully charged, the continuous receiving time can reach 8 hours, the short wave transmission power can output 10 watts, and the UV segment can output more than 2 watts.
Increased UV section
output power
VHF output power: 10W Max;
UHF output power: 5W Max
VHF output power: 20W Max;
UHF output power: 10W Max
The output power of UV section is increased
Optimize and improve technical parametersThe noise inside the machine is reduced, the emission spurious suppression is improved, and the power output linearity is better.

ALL BAND ALL MODE HF/VHF/UHF TRANSCEIVER Q900 Version 3

Es wird aus Datenschutzgründen nur das Vorschaubild des Videos angezeigt. Erst nach einem KLICK auf das Video wird eine Verbindung zu Youtube hergestellt.

Merkmale:

1. Spektrum in Echtzeit.

2. Wasserfall-Diagramm.

3. Doppler Frequenzverfolgung.

4, mit Software-Defined-Radio-Technologie (SDR), Full-Band-Unterstützung DMR (optional), SSB, CW, RTTY, AM, FM.

5. Doppelte Frequenzumwandlung Schaltung Struktur.

6. IF-Breite und IF-Verschiebung Hardware und Software können modifiziert werden, um leistungsstarke IF-Interferenzunterdrückung zu bieten.

7. Digitale DSP-Rauschunterdrückung.

8. Eingebauter automatischer Hochgeschwindigkeits-Antennentuner für 160-6 Meter.

9. Eingebautes bluetooth.

10. Eingebaute Soundkarte mit IQ und Audioausgang.

11. Eingebauter 4.9AH Akku.

12. USB TYPEC3.1 Schnittstelle für Stromversorgung und Computeranschluss.

13. Hochpräziser TXCO ± 0,5ppm (-10-60 ℃).

14. Ultrabreiter Arbeitsspannungsbereich: 5-32VDC.

15. Schutz vor Verpolung der Stromversorgung.

16. GPS / BeiDou, elektronischer Kompass (Beschleunigung, Winkelsensor) sind optional. Das Standard-Kit enthält nicht die oben genannten Module

17. GPS-Zeitdienst (erfordert optionales GPS-Modul).

18. Eingebaute UTC-Uhr.

19. Spannungsanzeige.

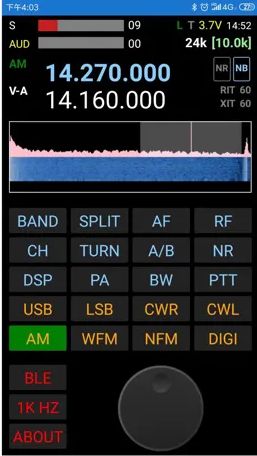

20. Telefon APP-Fernbedienung.

Quelle: QRZNOW.com

Quelle: TechMinds

Quelle: www.guohedz.com
